Sartorius Scales and Balances are on SALE at Central Carolina Scale, Inc.

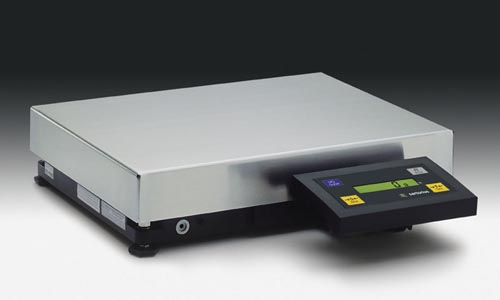

Sartorius Economy EA Scale

Affordable, rugged scales. If you simply want to use your scale only for weighing. the Sartorius Economy EA is exactly the right choice for you.

Standard Features
Economy EA
• Affordable, rugged scales. If you simply want to use your scale
only for weighing. the Sartorius Economy EA is exactly the right
choice for you.
• Rugged and reliable
• Highest quality craftsmanship
• SPEED UP technology - stable results within approx. ½ second
after loading the sample
• Total ease of operation
• Backlit display
• Stainless steel load plate
• Built-in interface as a standard feature

Additional Features EA and EB Scales
• 10x resolution menu setting will allow for higher readability
• Rugged construction with overload protection of 2x scale
capacity
• Choice of displayed units, including lb/oz
• Platforms are IP54 protection rated. Displayed units are IP40
protection rated
• Cable length from scales to display:
- For all units other than FEG – 1.6 ft
- For all FEG units – 8.2 ft
• Below balance weighing available on all units except FEG

Catalog Page

RLWS PN	SARTORIUS PN	DIMENSIONS (in)	# LOAD CELLS	CAPACITY (lb)	READABILITY (lb)	CAPACITY (kg)	READABILITY (kg)	SHIP WT (lb)
High Resolution Weighing
87901	EA3DCE-I	12.6 x 9.4	1	6.6	0.0002	3	0.1	16
47106	EA6DCE-I	12.6 x 9.4	1	13	0.0005	6	0.2	16
47108	EA15DCE-I	12.6 x 9.4	1	33	0.001	15	0.5	16
47110	EA35EDE-I	15.7 x 11.8	1	77	0.002	35	1	24
47112	EA60EDE-I	15.7 x 11.8	1	132	0.005	60	2	24
47114	EA60FEG-I	19.7 x 15.7	1	132	0.005	60	2	68
47116	EA150FEG-I	19.7 x 15.7	1	330	0.01	150	5	68
Low Resolution Weighing
102824	EA3DCE-L	12.6 x 9.4	1	6.6	0.001	3	0.5	16
102825	EA6DCE-L	12.6 x 9.4	1	13	0.002	6	1	16
102826	EA15DCE-L	12.6 x 9.4	1	33	0.005	15	2	16
102827	EA35EDE-L	15.7 x 11.8	1	77	0.01	35	5	24
102828	EA60EDE-L	15.7 x 11.8	1	132	0.02	60	10	24
102829	EA60FEG-L	19.7 x 15.7	1	132	0.02	60	10	68
102830	EA150FEG-L	19.7 x 15.7	1	330	0.05	150	20	68

Options/Accessories

36907 ..........YDP03-0CE ..................Data printer with statistics and time/date functions (included cable fits RS-232)

31103 ..........6906937 .......................Paper for data printer (PN 36907), five pack

31106 ..........6906918 .......................Replacement ribbon for data printer (PN 36907)

52373 ..........YDP04 ..........................Data printer, 5 ft cable (fits RS-232), for EA/EB S/N113075 and above

46523 ..........YDP04IS-0CEV120 .......Strip and label printer (cable required).

31071 ..........YRB05Z ........................Battery pack, rechargeable, external, approx 48 hours of operation

46528 ..........YTC01 ..........................T-connector

31075 ..........6971412 .......................220 VAC power supply

50232 ..........6971413 .......................110 VAC power supply, or for use with data printer (PN 36907) (not standard with unit)

46524 .........YDH01EA ...................Column, for display on DCE platform models (12.8" H)

46525 .........YDH02EA ..................Column, for display on EDE platform models (19.7" H)

46527 ..........YDH03EA .....................Display holder for all or bench mount

46526 .........YDH04EA ..................Column for display on FEG platform models (29.5" H)

31117 ..........IDAC-97 .......................Digital-to-analog converter (fits RS-232)

70489 ..........QLC-97 ........................Quad limit controller (fits RS-232)

46529 ..........YFS01 ..........................Foot switch with T-connector, for remote control of print, tare, cal, F, CFR, or toggle key (set up in menu)

70490 ..........YHS02 ..........................Hand switch with T-connector, for remote control of print, tare, cal, F, CFR, or toggle key (setup in menu)

32637 ..........LD2 ..............................Locking device, anti-theft

For more information or to place an order call (919) 776-7737 or email us
